Low-Atomizing Condenser Coil Cleaner | Aerosol FMA-1 / Cylinder FM-SC
The Coil Cleaner your coil cleaner, wishes it could be.
Stop breathing your coil cleaner. Standard aerosol cleaners create a “wall of foam” that sits on the surface, preventing the chemistry from reaching the center of the coil. Worse, they cheap ones are like fog machines—they create a fine, airy mist. In windy rooftop conditions, that mist atomizes and drifts, covering the technician and surrounding equipment in caustic chemicals. Others generate shaving cream type foam that only sits on the surface and doesn’t break down to react with debris trapped inside the coil. Aerosol foam might look impressive, but if your chemical is suspended in propellant foam, it’s not doing much to help you clean.
Foaminator hits different. Engineered with Low-Atomizing Technology, it projects a heavy, high-flow “liquid rope.” This distinct stream fights the wind to put the chemistry exactly where you aim it—deep into the coil—without the blowback.

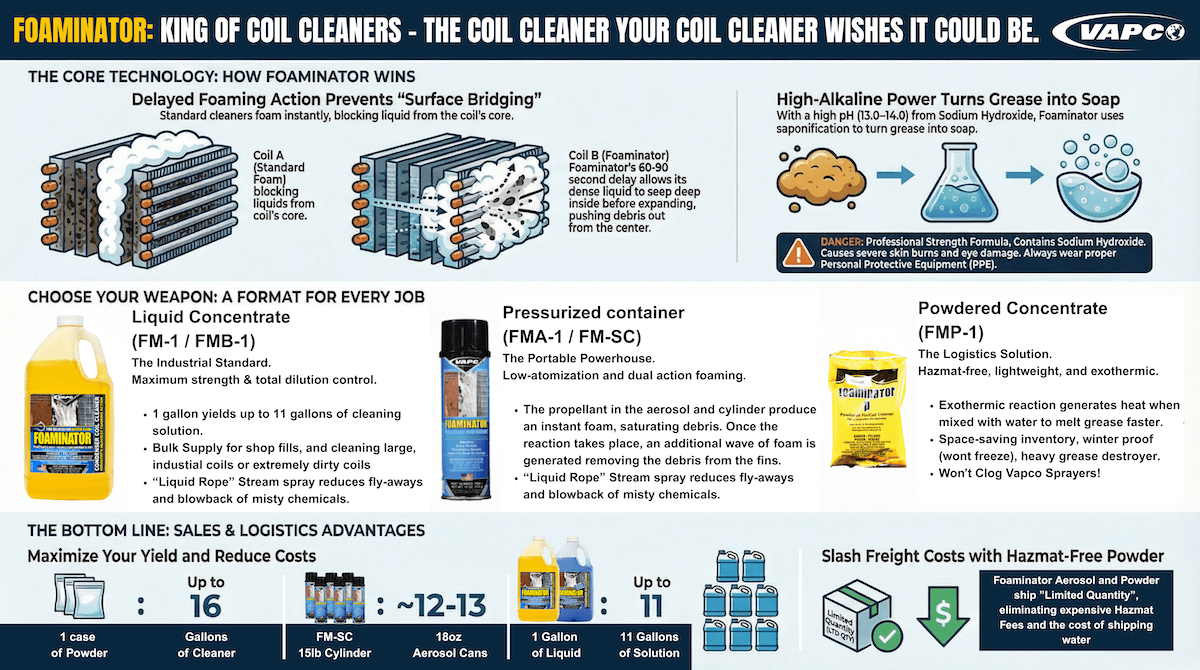

Manufacturer’s Tech Note: Dual-Action Foaming Technology. You will see two distinct cleaning phases.
Phase 1 (Saturation): The propellant creates an immediate, high-viscosity “Wet Foam” that clings to vertical surfaces for maximum dwell time.
Phase 2 (Expansion): As the alkaline chemistry interacts with the metal, a secondary “Reactive Foam” generates from the inside out, physically pushing impacted debris out of the coil core.
The Physics of Clean: Industrial Power, Precision Safety
Foaminator Aerosol & Cylinder utilizes a high-alkaline Sodium Hydroxide base to chemically convert grease and oil into soap (saponification), delivering the power of a bulk liquid in a convenient pressurized format.
| KEY FEATURE / SPECIFICATION |
TRADE BENEFIT / RESULT |
| Low-Atomizing “Liquid Rope” |
Technician Safety: Reduces “mist drift” and blowback. The chemical hits the coil, not your face or uniform. |
| Deep Penetrating Action |
Core Cleaning: The high-velocity stream punches through multi-row coils before expanding, preventing surface bridging. |
| Alkaline Saponification |
Grease Removal: Chemically converts cooking grease, tar, and heavy oils into water-soluble soap for easy rinsing. |
| High-Viscosity Wet Foam |
Maximum Dwell Time: Creates a dense, heavy foam that clings to vertical surfaces to break down stubborn oxidation. |
| 15 lb Cylinder Advantage |
Commercial Efficiency: The FM-SC provides the volume of ~13 cans with consistent pressure that doesn’t drop off. |
| Material Compatibility |
Condenser Coils Only: Designed for copper tube/aluminum fin outdoor coils. Not for use on evaporator coils, coated micro-channel coils, or heat exchangers. |
Vapco Field Guide: Performance Matrix
How Foaminator stacks up against real-world contaminants. (★★★ = Best in Class)
| CONTAMINANT |
RATING |
WHY IT WINS |
| Cooking Grease & Oil |
★★★ |
Saponifies heavy grease instantly. Rated Best-in-Class. |
| Corrosion & Oxidation |
★★★ |
Brightening Action: Strips white rust and dull oxidation from aluminum fins. |
| Grass, Bugs, & Cottonwood |
★★★ |
Liquid rope stream penetrates past surface matting to push debris out from the center. |
| Dirt, Dust, Pollutants |
★★★ |
Heavy foaming action lifts microscopic particulates for easy rinsing. |
| Wind Resistance (Safety) |
★★★ |
Heavy foaming action lifts microscopic particulates for easy rinsing. |
| Compatibility Warning |
RESTRICTED |
Condenser Coils ONLY. Do not use on Evaporators, Micro-Channel, or Electronic Air Filters. |
Part Number Reference:
Select the right volume for your workload. Both sizes utilize the non-atomizing surfactant technology.
1. Select Your Size
| PART NUMBER |
SIZE / PACK |
APPLICATION FIT |

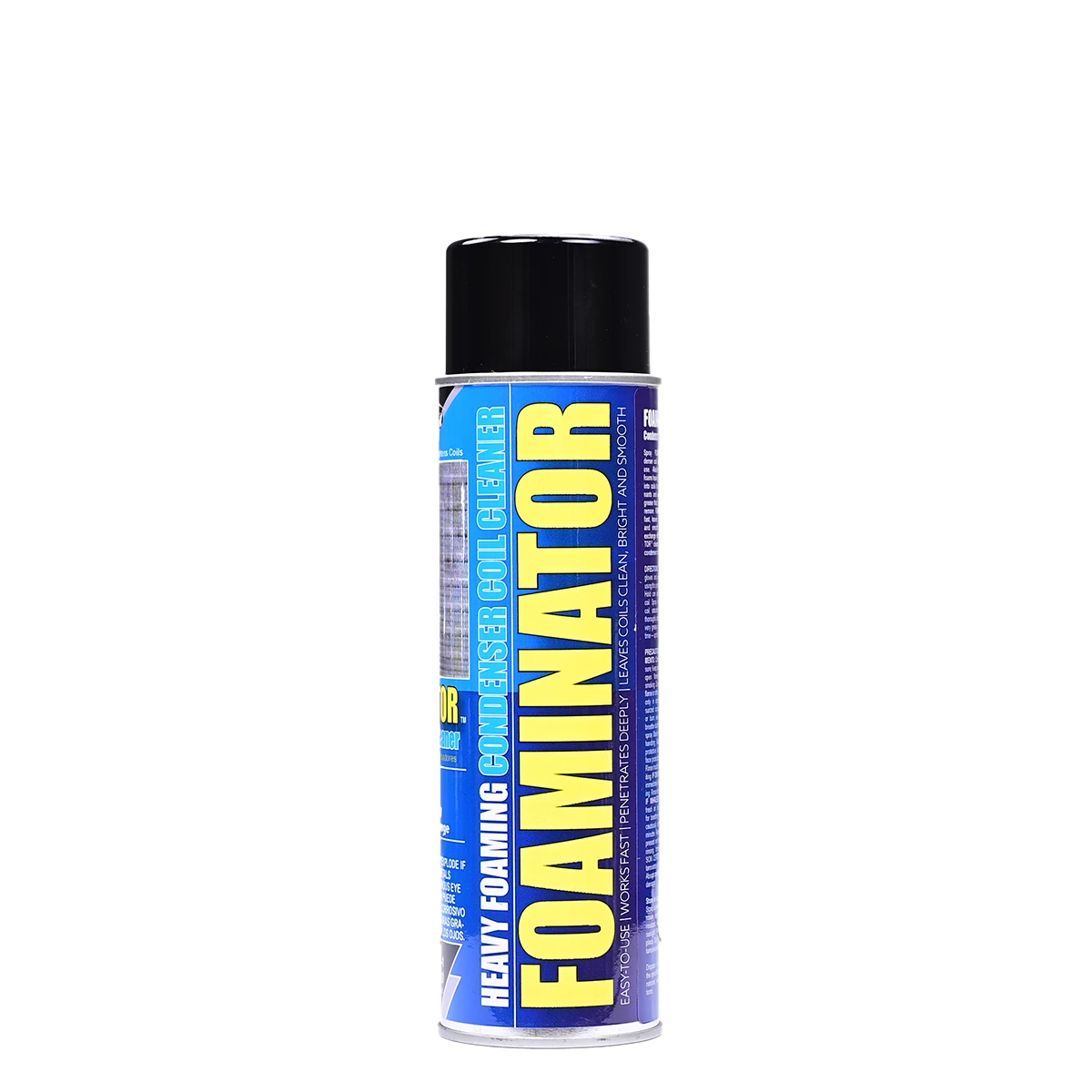

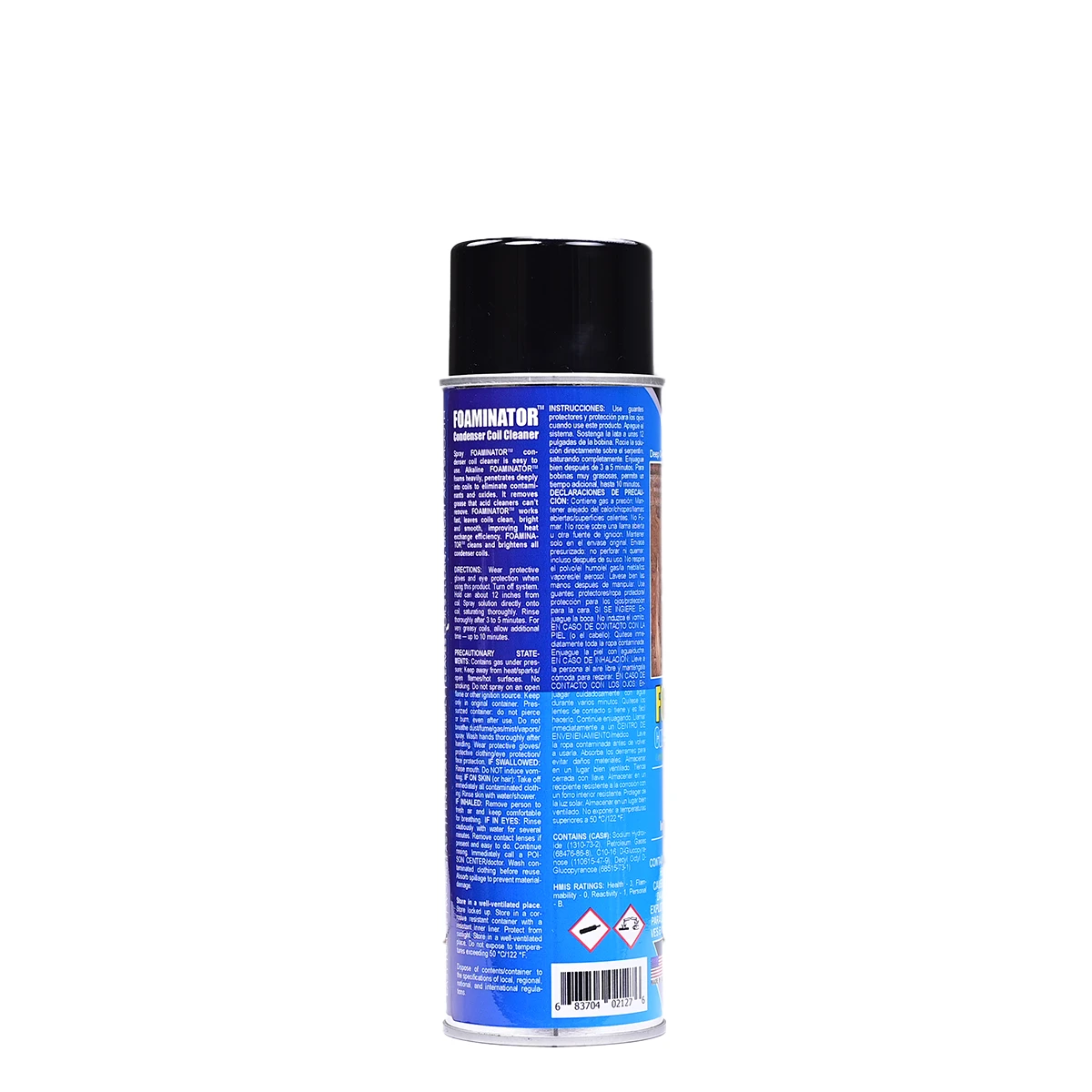

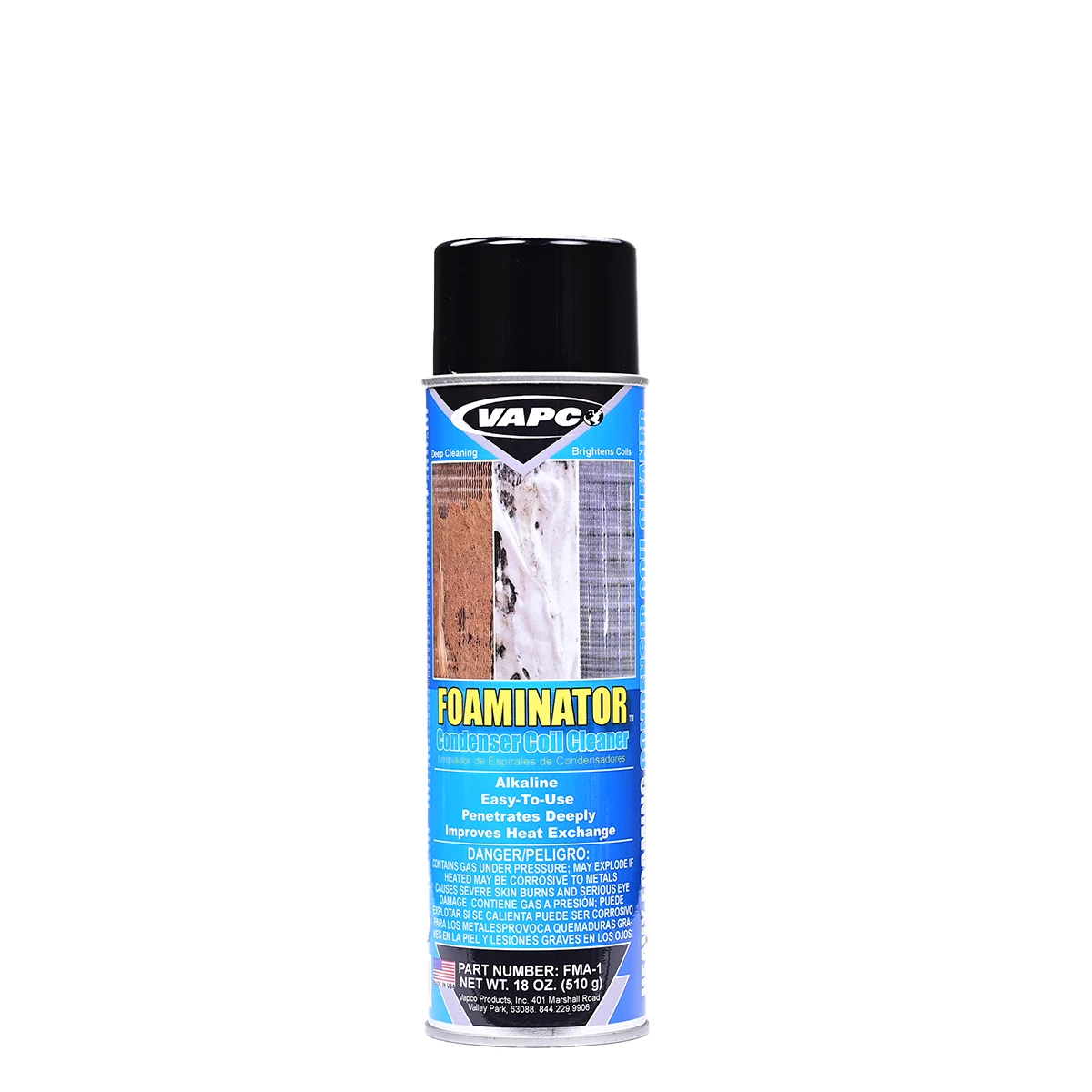

| FMA-1 |
18 oz Aerosol
(Case of 6) |
Truck Stock Standard: Perfect for spot cleaning, residential units, and hard-to-reach coils. |
| FM-SC |
15 lb Cylinder
(Sold Individually) |
Commercial / Bulk: The “Beast.” Ideal for large commercial rooftops, multi-family properties, or PMs. Equivalent to ~12 cans of aerosol. |
2. Essential Cylinder Accessories
Commercial grade hardware for the FM-SC 15lb Cylinder.
| PART NUMBER |
ITEM |
DESCRIPTION |
| SPR-SM |
Small Spray Gun |
Grip Control: Heavy-duty, spray gun designed for precise control of the cylinder stream. Avoid the aerosol “claw hand” – SPR-SM is more ergonomic for repeated use. |
| SHA-1 |
5′ Hose Assembly |
Standard Reach: 5-foot high-pressure hose. Connects the FM-SC Cylinder to the Spray Gun. |
| SHA-12 |
12′ Hose Assembly |
Extended Reach: 12-foot high-pressure hose. Allows the technician to move around large commercial units without moving the cylinder. |
3. Other Foaminator Configurations
| Liquid Concentrate |
Foaminator Liquid The original delayed-expansion formula. Available in gallons, 5s, and drums. |
| Powder |
Foaminator Powder Save weight and space. The power of Foaminator in a lightweight powder concentrate. |
Contractors: Please contact your local Vapco distributor for pricing and availability.
Why “Instant Foam” Fails Your Coils – Use Low-Atomizing Condenser Coil Cleaner
| THE PAIN POINT (Traditional Aerosols) |
THE FOAMINATOR ADVANTAGE |
“Wind Drift & Fly-Aways”
Lighter formulas atomize in the air, causing chemical waste and exposure risks. |
“Cohesive Stream Technology”
Heavy liquid formula stays together in a tight stream to resist wind shear. |
“Dry Foam Bridging”
Competitors use “mega foam” (mostly propellant) that sits on the surface and looks pretty but cleans nothing. |
“Wet Foam Saturation”
Dense, heavy foam clings to the fins and soaks inward to saponify grease at the core then reacts again to drive debris out. |
“Can Fatigue”
Changing cans 12 times on a large commercial rooftop unit. |
“Cylinder Efficiency”
The FM-SC 15lb Cylinder equals ~13 cans. Continuous pressure for the whole job. |
FAQs
Frequently Asked Questions: Foaminator Aerosol & Cylinder
Application & Performance
Q: Why doesn’t it create a giant “cloud” of foam like other brands?
A: That is the difference between “Dry Foam” (them) and “Wet Foam” (us). “Cloud” foam is mostly air; it bridges over the dirt and looks impressive but cleans poorly. Foaminator creates a high-density “Wet Foam” using Dual-Action Chemistry. It clings to the coil and saturates the debris first, then the alkaline reaction expands to push the dirt out from the core. Product Heavy vs Propellant Heavy.
Q: Why does it shoot a stream instead of a mist?
A: We engineered the nozzle and viscosity for a Low-Atomizing “Liquid Rope” Stream. This is a safety feature. By projecting a cohesive stream, the chemical fights the wind and lands exactly where you aim it—deep in the coil—rather than atomizing into a mist that blows back onto your skin or clothes.
Q: Is the chemistry different in the Aerosol vs. the Cylinder?
A: No. Both the FMA-1 (18 oz can) and FM-SC (15 lb cylinder) contain the exact same high-alkaline, non-atomizing formula. The only difference is the delivery method and volume.
Q: Can I use this on indoor Evaporator Coils?
A: NO. Foaminator is a high-pH alkaline cleaner designed for outdoor condensers only. It produces fumes that are not suitable for enclosed spaces, and the heavy foam requires high-volume rinsing not easily done indoors. Use Mongoose (MC-1) or High Tech Evap (HTEC-1) instead.
Cylinder Setup & Equipment
Q: What do I need to use the 15lb Cylinder (FM-SC)?
A: The cylinder requires a reusable hose and spray gun assembly (sold separately).
- Spray Gun (SPR-SM): A heavy-duty pistol grip gun for precise control.
- Hose (SHA-1 or SHA-12): Available in 5-foot or 12-foot lengths depending on your reach requirements.
Q: How many cans is the Cylinder equivalent to?
A: One 15lb FM-SC Cylinder is equivalent to approximately 12 to 13 standard aerosol cans. It offers the advantage of continuous, consistent pressure that doesn’t drop off as the container empties, making it faster for large commercial jobs.
Safety & Compatibility
Q: Is this safe for Micro-Channel coils?
A: NO. Foaminator is a high-pH alkaline cleaner. It can strip the delicate aluminum surfaces of micro-channel coils or coated fins. We strongly recommend using a pH-neutral cleaner for these sensitive coils, such as Eco Clean (EC-1).
Q: Do I need PPE? It says “Low-Atomizing.”
A: YES. While the liquid rope stream reduces the risk of blow-back, this product contains Sodium Hydroxide which causes severe burns. Always wear goggles, chemical-resistant gloves, and long sleeves.
Q: Will it kill the grass around the unit?
A: Yes. High-alkaline runoff can damage vegetation. We recommend flooding the ground beneath the unit with water before and after cleaning to dilute the runoff.
Logistics & Storage
Q: How does cold weather affect the cans?
A: Like all pressurized containers, cold temperatures drop the internal pressure. If the can or cylinder is extremely cold, the stream may be weaker. For best results in winter, store the product in a heated truck cab or warm room prior to use to ensure maximum pressure and foam expansion.
Q: How do I dispose of the empty containers?
A: Both the aerosol cans and the steel cylinders are recyclable steel.
- Aerosol: Ensure the can is empty and depressurized.
- Cylinder: Open the valve to ensure it is fully depressurized. Punch out the knock-out plug if applicable (check local regulations). Recycle as scrap steel.
Q: What is the shelf life?
A: Foaminator aerosols have a shelf life of 5+ years. The sealed environment prevents the product from degrading. Warranty is 1 year from date of manufacture.
SDS & Instructions
📄 DOWNLOAD AEROSOL SDS (PDF)
📄 DOWNLOAD CYLINDER SDS (PDF)
⚠️ Professional Use Only
Contains Sodium Hydroxide. Causes severe skin burns and eye damage. Always wear chemical-resistant gloves, goggles, and protective clothing. DO NOT use on Micro-Channel or Mini-Split Coils.
| TARGET CONTAMINANT |
TYPICAL SOURCE |
ACTION |
PERFORMANCE / WHY IT WORKS |
| Cottonwood, Grass, Dirt & Bugs |
Landscaping / Seasonal Debris |
Deep Push-Out |
Dual-Action Expansion: The “Liquid Rope” stream penetrates past the surface matting. Once inside, the reactive foam expands, physically pushing the debris out of the coil face rather than embedding it deeper. |
| Grease & Road Grime |
Kitchen Exhaust / Traffic Film |
Saponification |
High pH Sodium Hydroxide base chemically converts insoluble fats and heavy oils into water-soluble soap, while surfactants cut through sticky traffic film and road salts. |
| Oxidation & Corrosion |
Environmental Exposure |
Brightening |
Alkaline chemistry strips dull oxide layers and white rust from aluminum fins, restoring the bright metal finish and improving thermal heat transfer. |
| Pollutants & Soot |
Industrial Areas / Rooftops |
Suspension |
Dense “Wet Foam” structure lifts microscopic atmospheric pollutants and carbon soot away from the metal, suspending them for an easy rinse. |
System Material Compatibility
| MATERIAL / COMPONENT |
STATUS & PROTOCOL |
| Outdoor Condenser Coils |
✅ RECOMMENDED / RINSE REQUIRED |
| Micro-Channel / Mini-Split Coils (All Aluminum) |
❌ DO NOT USE
High pH will corrode brazed aluminum joints. |
| Indoor Evaporator Coils |
❌ DO NOT USE
Fumes and high-volume rinse requirements make this unsuitable for indoor use. |
| Coated Fins |
⚠️ CAUTION
Alkaline cleaners may strip protective, manufacturers coatings. Test a small area first. |
Roof & Surroundings Safety Protocol:
Foaminator’s high-alkaline runoff can damage rubber roof membranes, asphalt, and vegetation. Always ensure all chemical and foam is completely flushed and diluted off the roof/pad during the rinse phase. Do not leave standing chemical or foam residue.
*For standard in-place evaporator cleaning, use Mongoose MCC-1 or High Tech Evap (HTEC-1) or Eco Clean (EC-1) in highly sensitive areas.
Directions for Low-Atomizing Coil Cleaner:
FMA-1 / FM-SC
1. Preparation & Setup
Step 1: Protect the Surroundings. Alkaline runoff can kill grass and plants. Pre-soak the ground beneath the unit with water before cleaning and rinse heavily after.
Step 2: Shut off power to the HVAC unit.
Step 3: Remove any heavy loose debris (leaves, grass, cottonwood matting) from the coil exterior with a brush or vacuum.
Cylinder Setup (FM-SC Only):
- Connect the Hose Assembly (SHA-1 or SHA-12) to the cylinder valve.
- Connect the Spray Gun (SPR-SM) to the other end of the hose.
- CRITICAL: Lightly wrench tighten all connectors to ensure a proper seal. Hand-tightening may result in leaking under pressure.
- Open the cylinder valve slowly to pressurize the line. check for leaks before use.
Capacity & Yield Comparison
| CONTAINER |
NET WEIGHT |
EQUIVALENCY / USE CASE |
| FMA-1 (Aerosol) |
18 oz |
Standard Unit: Ideal for single residential condensers or spot cleaning. |
| FM-SC (Cylinder) |
15 lbs |
Commercial Bulk: Equivalent to approx. 12-13 Aerosol Cans. Provides consistent pressure for large rooftop jobs. |
2. Application & Cleaning
Leverage the “Liquid Rope” stream for deep saturation.
- Apply Solution:
- Hold the can or spray gun 6-12 inches from the coil face.
- Spray the solution onto the coils, starting at the bottom and working your way up.
- Saturate the coil thoroughly. The “Wet Foam” will cling immediately.
- The Critical Wait (Dwell Time):
-
- Wait 3 to 5 minutes. (Up to 8 minutes for heavy grease).
- Observation: The foam will undergo a secondary expansion reaction, pushing debris outward from the core.
- Do not let the chemical dry on the coil.
3. Rinse & Completion
Flush away the saponified grease and debris.
- Rinse Thoroughly:
- Using a hose with a low-pressure spray or a pressure washer (carefully regulated to avoid bending fins), rinse the coil.
- Rinse from the top down to wash the debris away.
- Ensure all foam and chemical residue is removed from the coil and surrounding equipment.
- Restart:
- Restore power to the unit. The equipment is now clean and thermal efficiency is restored.
🧪 SDS SECTION: AEROSOL (FMA-1)
1. Identification & Supplier Details
| Product Name |
Foaminator Aerosol |
| Product Numbers |
FMA-1 |
| Recommended Use |
Condenser Coil Cleaner |
| Emergency Phone |
(800) 255-3924 |
2. Hazards Identification
| GHS Classification |
Skin Corrosion 1; Eye Damage 1; Gases Under Pressure |
| Signal Word |
DANGER |
| Hazard Statements |
H314: Causes severe skin burns and eye damage.
H280: Contains gas under pressure; may explode if heated. |
| Precautionary Statements |
P260: Do not breathe mist/spray.
P280: Wear protective gloves/clothing/eye protection.
P303+P361+P353: IF ON SKIN: Take off contaminated clothing. Rinse skin with water/shower.
P305+P351+P338: IF IN EYES: Rinse cautiously with water. Remove contact lenses.
P410+P403: Protect from sunlight. Store in a well-ventilated place. |
3. Composition / Information on Ingredients
| Component Name |
CAS Number |
Concentration |
| Sodium Hydroxide (NaOH) |
1310-73-2 |
1 – 20% |
| Petroleum gases, liquefied, sweetened |
68476-86-8 |
1 – 10% |
| Ammonium Hydroxide |
1336-21-6 |
0.1 – 1% |
4. First-Aid Measures
| Skin Contact |
CORROSIVE. Immediately take off contaminated clothing. Rinse skin with water/shower for at least 15 minutes. |
| Eye Contact |
SEVERE DAMAGE. Rinse cautiously with water for at least 15 minutes. Remove contact lenses. Get medical attention. |
| Inhalation |
Remove person to fresh air. Keep comfortable for breathing. Get medical advice/attention. |
| Ingestion |
Rinse mouth. Do NOT induce vomiting. Get immediate medical attention. |
5. Fire-Fighting Measures
| Suitable Extinguishing Media |
Water spray, fog, CO2, alcohol-resistant foam, dry chemical, or sand. |
| Specific Hazards |
Contains gas under pressure; may explode if heated. Vapors are heavier than air. |
| Special Protective Actions |
Wear NIOSH-approved SCBA with full face piece and full body protective clothing. Fight fire remotely if possible. |
6. Accidental Release Measures
| Personal Precautions |
Eliminate ignition sources. Do not breathe vapors/spray. Evacuate area. Wear PPE. |
| Environmental Precautions |
Prevent entry to sewers and public waters. Check pH before disposal (if >12.5, it is RCRA Hazardous). |
| Cleanup Methods |
Contain spill with dikes/absorbents. Neutralize residue carefully. Transfer to suitable containers. |
7. Handling & Storage
| Safe Handling |
Avoid contact with skin and eyes. Do not breathe mist/spray. Do not pierce or burn, even after use. |
| Safe Storage |
Store in a dry, cool, well-ventilated place. Protect from sunlight. Do not expose to temperatures exceeding 50°C/122°F. |
| Incompatible Materials |
Strong acids and chemically active metals (Aluminum). |
8. Exposure Controls / Personal Protection
| Exposure Limits |
Sodium Hydroxide: OSHA PEL / ACGIH TLV: 2 mg/m³ (Ceiling). |
| Engineering Controls |
Emergency eye wash fountains and safety showers must be available nearby. Ensure adequate ventilation. |
| PPE (Personal Protective Equipment) |
Eyes: Chemical safety goggles.
Skin: Chemical-resistant gloves and protective clothing.
Respiratory: NIOSH-approved SCBA if exposure exceeds limits. |
9. Physical & Chemical Properties
| Physical State |
Aerosol Spray |
| Color / Odor |
Yellow / Bland Odor |
| Solubility |
Soluble in Water |
| pH |
13.0 – 14.0 (Corrosive) |
10. Stability & Reactivity
| Reactivity / Stability |
Stable under normal conditions. Reacts with chemically active metals and acids. Contains gas under pressure. |
| Conditions to Avoid |
Direct sunlight, temperatures >50°C, heat, sparks, open flames. |
| Hazardous Decomposition |
Carbon oxides, Sodium oxides. |
11. Toxicological Information
| Skin/Eye |
Causes severe skin burns and serious eye damage. Risk of blindness. |
| Inhalation |
May cause irritation, chemical burns to respiratory tract. |
| Carcinogenicity |
Not classified. |
12. Ecological Information
| Ecotoxicity (NaOH) |
LC50 Mosquito Fish: 125 mg/L (96h). |
| Persistence / Mobility |
Mobile in soil. No bioaccumulation expected. |
13. Disposal Considerations
| Disposal Method |
Dispose of in accordance with regulations. RCRA Hazardous Waste (D002) if pH > 12.5. |
| Container |
Do not pierce or burn, even after use. |
14. Transport Information
| Regulation |
UN Number |
Class |
Proper Shipping Name |
| DOT (US) |
UN1950 |
2.2 (8) |
Aerosols, corrosive, Packing Group II or III |
15. Regulatory Information
| US Federal / State |
TSCA: Listed.
Right To Know (MA, NJ, PA): Sodium Hydroxide. |
16. Other Information
| Preparation |
Prepared by: Jessica Wilson
Date: 2/13/2025
Version: 1.0 |
| Disclaimer |
The information provided is believed to be accurate but comes without warranty. User is responsible for full compliance with local regulations. |
🧪 SDS SECTION: CYLINDER (FM-SC)
1. Identification & Supplier Details (Cylinder)
| Product Name |
Foaminator Cylinder |
| Product Numbers |
FM-SC, FM-LC |
| Recommended Use |
Non-acid, alkaline-based coil cleaner |
| Emergency Phone |
(800) 255-3924 |
2. Hazards Identification (Cylinder)
| GHS Classification |
Eye Damage 1; Skin Corrosion 1A; Corrosive to Metals 1; Gases Under Pressure |
| Signal Word |
DANGER |
| Hazard Statements |
H280: Contains gas under pressure; may explode if heated.
H290: May be corrosive to metals.
H314: Causes severe skin burns and eye damage. |
| Precautionary Statements |
P260: Do not breathe mist/spray.
P280: Wear protective gloves/clothing/eye protection.
P310: Immediately call a POISON CENTER/doctor.
P410+P403: Protect from sunlight. Store in a well-ventilated place. |
3. Composition / Ingredients (Cylinder)
| Component Name |
CAS Number |
Concentration |
| Propane, liquid |
74-98-6 |
1 – 10% |
| Sodium Hydroxide |
1310-73-2 |
1 – 10% |
| N-Butane |
106-97-8 |
1 – 2% |
| Ammonium Hydroxide |
1336-21-6 |
0.1 – 1% |
4. First-Aid Measures
| Skin Contact |
CORROSIVE. Take off immediately all contaminated clothing. Rinse skin with water/shower for at least 15 minutes. |
| Eye Contact |
SEVERE DAMAGE. Rinse cautiously with water for several minutes. Remove contact lenses. Continue rinsing for at least 15 minutes. |
| Inhalation |
Remove person to fresh air. Keep comfortable for breathing. Get medical advice/attention. |
| Ingestion |
Rinse mouth. Do NOT induce vomiting. Get immediate medical attention. |
5. Fire-Fighting Measures
| Suitable Extinguishing Media |
Water spray, fog, carbon dioxide, alcohol-resistant foam, dry chemical, or sand. |
| Specific Hazards |
Container may explode in heat of fire. Vapors are heavier than air and may flash back. |
| Special Protective Actions |
Wear NIOSH-approved SCBA. Fight fire remotely. Use water spray to cool containers. |
6. Accidental Release Measures
| Personal Precautions |
Eliminate ignition sources. Do not breathe vapors/spray. Evacuate area. Wear PPE. |
| Environmental Precautions |
Prevent entry to sewers and public waters. Avoid release to the environment. |
| Cleanup Methods |
Contain spill with dikes/absorbents. Isolate area until gas has dispersed. Take up liquid spill into absorbent material. |
7. Handling & Storage
| Safe Handling |
Do not breathe mist/spray. Avoid contact with skin/eyes. Do not pierce or burn, even after use. Do not pressurize, cut, or weld containers. |
| Safe Storage |
Store in a dry, cool, well-ventilated place. Protect from sunlight. Do not expose to temperatures exceeding 50°C/122°F. |
| Incompatible Materials |
Organic materials, concentrated nitric acids, metals. |
8. Exposure Controls / Personal Protection
| Engineering Controls |
Emergency eye wash fountains and safety showers must be available nearby. Ensure adequate ventilation. |
| PPE (Personal Protective Equipment) |
Eyes: Chemical safety goggles.
Skin: Chemical-resistant gloves and protective clothing.
Respiratory: NIOSH-approved SCBA if exposure exceeds limits. |
9. Physical & Chemical Properties
| Physical State |
Liquid / Pressurized Spray |
| Color / Odor |
Yellow / Bland Odor |
| Solubility |
Completely Soluble in Water |
| pH |
11 – 14 (Highly Alkaline) |
10. Stability & Reactivity
| Reactivity / Stability |
Reacts with chemically active metals and acids. Contains gas under pressure; may explode if heated. |
| Conditions to Avoid |
Heat, sparks, open flames, hot surfaces. Do not expose to temperatures > 50°C / 122°F. |
| Hazardous Decomposition |
Carbon oxides, nitrogen oxides. |
11. Toxicological Information
| Skin/Eye |
Causes severe skin burns and serious eye damage. Risk of blindness. |
| Inhalation |
May cause irritation, chemical burns to respiratory tract, drowsiness, or dizziness. |
| Aspiration Hazard |
Harmful if inhaled. Asphyxia by lack of oxygen: risk of death. |
12. Ecological Information
| Ecotoxicity (Selected) |
Sodium hydroxide LC50 (Mosquito fish): 125 mg/L (96h). |
| Persistence / Mobility |
Biodegradable. Avoid release to the environment. |
13. Disposal Considerations
| Disposal Method |
Dispose of in accordance with regulations. Hazardous waste if pH > 12.5 (D002 Corrosivity). |
| Container |
Do not pierce, burn, flame cut, or weld container. |
14. Transport Information
| Regulation |
UN Number |
Class |
Proper Shipping Name |
| DOT (US) |
UN1956 |
2.2 (Non-Flammable Gas) |
Compressed gas, n.o.s. |
15. Regulatory Information
| Right To Know |
Butane, Propane, Sodium Hydroxide, and Ammonium Hydroxide are listed on MA, NJ, and PA Right To Know Lists. |
| TSCA |
All listed hazardous components are on the US EPA TSCA public inventory. |
16. Other Information
| Preparation |
Prepared by: Jessica Wilson
Date: 2/17/2025 |
| Disclaimer |
The information provided is believed to be accurate but comes without warranty. User is responsible for full compliance with local regulations. |
Specs & Logistics
🛠️ FMA-1, FM-SC TECHNICAL DATA REPORT – DOWNLOAD
1. Physical & Chemical Properties
| Base Chemistry |
Sodium Hydroxide (1-10%) with Proprietary Surfactants |
| pH Level |
13.0 – 14.0 (Highly Alkaline) |
| Specific Gravity |
1.12 (Liquid Concentrate) |
| Spray Pattern |
Low-Atomizing “Liquid Rope” Stream |
| Propellant |
Propane / N-Butane |
| VOC Content |
Zero VOC / Biodegradable |
| Solubility |
100% Soluble in Water |
| Appearance (Dispensed) |
White High-Density Foam |
| Odor |
Chemical / Bland |
| Shelf Life |
5+ Years (Pressurized) |
| Temperature Stability |
Do not expose to temps > 120°F (50°C) |
2. UN & DOT Shipping Classification
Aerosol (FMA-1)
| Shipping Name: |
Aerosols, Corrosive |
| UN Number: |
UN1950 |
| Hazard Class: |
2.2 (Non-Flammable Gas) + 8 (Sub) |
| Ltd Qty (LTD QTY): |
YES (Ground Shipments) |
Cylinder (FM-SC)
| Shipping Name: |
Compressed Gas, N.O.S. |
| UN Number: |
UN1956 |
| Hazard Class: |
2.2 (Non-Flammable Gas) |
| LTD QTY: |
NO |
| Hazmat Required: |
YES |
3. Master Shipping & Dimensions Guide
| ITEM |
INDIVIDUAL UNIT |
QTY / CASE |
CASE SPECS |
PALLET CONFIGURATION |
CODE |
| Part # |
Wt (lbs) |
H (in) |
W (in) |
L (in) |
Units |
Wt (lbs) |
H (in) |
W (in) |
L (in) |
Cases/Pallet |
Total Units |
Wt (lbs) |
H (in) |
W (in) |
L (in) |
UPC |
FMA-1
(18 oz Can) |
[ ] |
[ ] |
[ ] |
[ ] |
6 |
[ ] |
[ ] |
[ ] |
[ ] |
[ ] |
[ ] |
[ ] |
[ ] |
40 |
48 |
[ ] |
FM-SC
(15 lb Cyl) |
[ ] |
[ ] |
[ ] |
[ ] |
1 |
N/A |
N/A |
N/A |
N/A |
N/A |
[ ] |
[ ] |
[ ] |
40 |
48 |
[ ] |
Harmonized Tariff Code (HTS): 3402.20.5100 (Cleaning Preparations)
(Code is the same as the base chemical/use remains consistent.)
NMFC Code – Aerosol (FMA-1): 42660 (Aerosols) – Class 60 / 65
(NMFC 48580 does not apply to DOT Hazmat items.)
NMFC Code – Cylinder (FM-SC): 71000 (Compressed Gas, N.O.I.) – Class 70
(NMFC is different due to pressurized Class 2.2 gas transport.)
